Processing of TROGAMID® molding compounds

Material Data

MVR

TROGAMID®
MVR [cm³/10 min]
Temp. MVR [°C]
Load MVR [kg]
CX7323
8.2
280
2.16
CX9704
30.0
275
5.00
CX9710
20.0
285
5.00
CX9711
47.0
280
2.16
myCX
8.2
280
2.16
Care MX73
8.2
280
2.16
Care MX97
31.0
285
5.00

Note: MVR indicate the viscosity at shear rates << 10 1/s. To estimate injection pressures (e.g. when comparing molding compounds) it is recommended to compare shear viscosities.

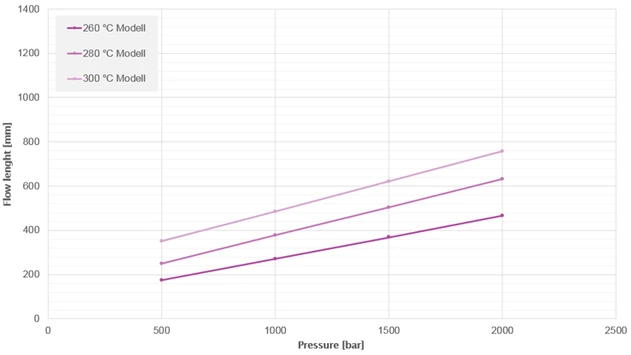

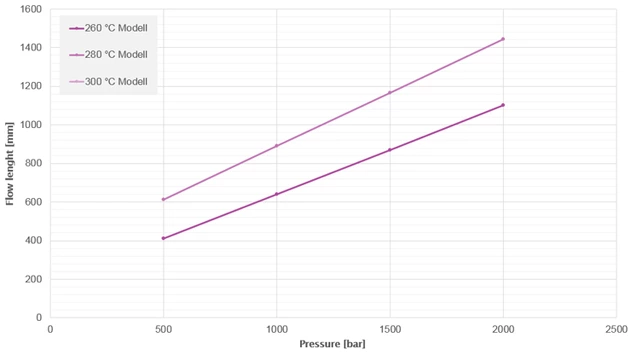

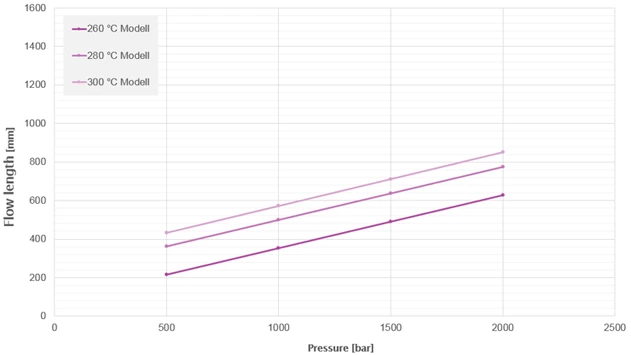

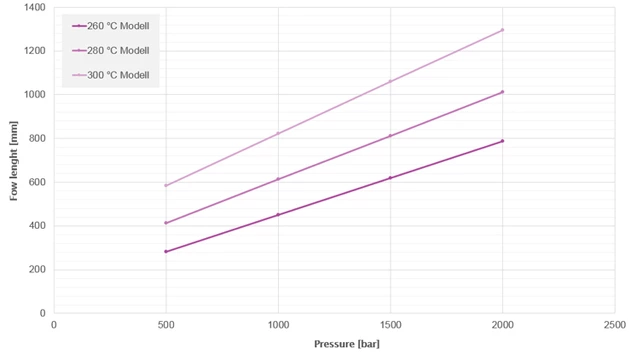

Flow lenghts
